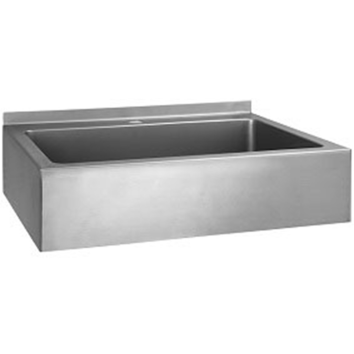

AUM 028Z is a durable, mantle-covered stainless steel washbasin, made entirely of material. 1.5 mm thick. The inner corners are round which prevents the retention of dirt and increases the hygiene standards of this sink. The sink is available in AISI 304 or chemically resistant AISI 316 (AUM 028Z.CL). In the basic version we produce AUM 028Z with a hole d = 33 mm for installing any stand-up tap. It is also possible to supply a washbasin without holes for the wall-mounted faucet on request – the change must be specified in the order!
The AUM 028Z stainless steel washbasin is also available with an AUM 3 automatic tap in all versions – for one mixed water, for hot and cold water, with a thermostatic valve. Power is possible from 12 V from ZAC or 6 V from AA batteries.
Washbasins are made of stainless steel AISI 304 or AISI 316.
VERSIONS:
| AUM 028Z | sink, coated, no tap, AISI 304 |
| AUM 028Z.1 | sink, coated, one supply – 12V, 50 Hz, AISI 304 |
| AUM 028Z.1.CL | sink, coated, one supply – 12V, 50 Hz, AISI 316 |
| AUM 028Z.1B | sink, coated,one supply – 6V (4x 1,5), AISI 304 |
| AUM 028Z.1B.CL | sink, coated, one supply- 6V (4x 1,5), AISI 316 |
| AUM 028Z.2 | sink, coated, for warm and cold water- 12V, 50 Hz, AISI 304 |
| AUM 028Z.2.CL | sink, coated, for warm and cold water – 12V, 50 Hz, AISI 316 |
| AUM 028Z.2B | sink, coated, for warm and cold water – 6V (4x 1,5), AISI 304 |
| AUM 028Z.2B.CL | sink, coated, for warm and cold water – 6V (4x 1,5), AISI 316 |
| AUM 028Z.CL | sink, coated, no tap, AISI 316 |
| AUM 028Z.TV | sink, coated, with thermostat valve – 12V, 50 Hz, AISI 304 |
| AUM 028Z.TV.CL | sink, coated, with thermostat valve – 12V, 50 Hz, AISI 316 |
| AUM 028Z.TVB | sink, coated, with thermostat valve – 6V (4x 1,5), AISI 304 |
| AUM 028Z.TVB.CL | sink, coated, with thermostat valve – 6V (4x 1,5), AISI 316 |
SCHEME:
