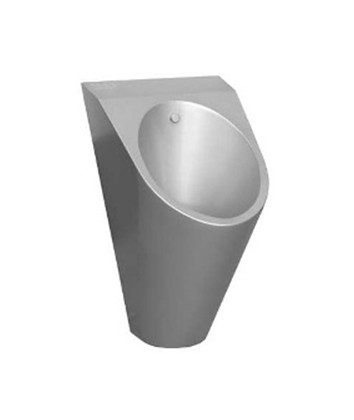

Automatic urinal – AUP 03

The automatic urinal AUP 03 is a stainless steel urinal, with an automatic flushing system using a volume sensor located directly on the siphon.
The volume sensor does not respond to people standing near or passing by the urinal.
This device is easily installed by connecting and hanging on the wall.
The flushing system is protected from mechanical damage, as all parts are located under the urinal cover.
When connected to a power source, the electronics adjust themselves to the actual environmental conditions.
After 24 hours of inactivity, the urinal automatically rinses itself.

Purpose:
Due to its resistance to damage, this urinal is intended mainly for installation in public spaces, rest areas along the highway, etc., where maximum water savings are achieved and longevity is guaranteed.

AUP 03 is made of stainless steel. steel AISI 304.

Device versions:
AUP 03 – automatic urinal with 12 V power supply A.C. in sig. transf. ZAC
AUP 03.B – automatic urinal with 6 V D.C. power supply, with 4 cylindrical batteries

Basic technical data:

• Water supply: 1/2 “
• Water pressure:
  0.1-1.0 MPa (AUP 03)
  0.2-0.8 MPa (AUP 03.B)
• Drain: d = 50 mm
• Power supply:
  12 V, 50 Hz (AUP 03)
  6 V – AUP 03.B (4x AA batteries)
• Power required: 6 VA (AUP 03)
• Safety power transformer:
  ZAC 1/20 (max.3 x AUP 03)
  ZAC 1/50 (max.8 x AUP 03)
• Weight: 8 kg

Delivery includes:

• Stainless steel urinal
• Syringe
• Freestanding siphon with volume sensor
• Solenoid valve
• Angle valve with filter
• Connecting pipes
• Console
• Fastening material
• Battery holder (code AUP 03.B)

Conditions for erecting the structure

1. Set up water supply system 1/2″ – as shown in the picture
2. Set up the drainage d=50 mm
3. Set up el. cable – 12 V, 50 Hz from a safety power transformer ZAC (for AUP 03).

A – water supply, un. diameter 1/2”
C – el. cable CYKYA 2A x 1.5
D – drainage (d=50 mm)
E – quantity sensor
