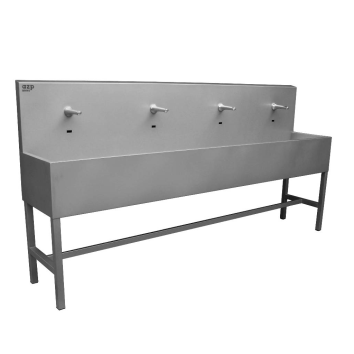

AUL 03 is a stainless steel trough with non-contact taps. The optoelectronic sensor responds to the hands below the spout – when the hands are placed in the sensing zone, the water is automatically released by opening the solenoid valve, which remains open for some time after removal (deceleration time).
The trough is produced in a hanging version (AUL 03Z) or mounted on a stand (AUL 03S). The water temperature is set using a thermostatic valve. Depending on the customer’s needs, the troughs can be equipped with soap and disinfectant dispensers, paper towel dispensers, trash cans and other accessories.
The siphon is located on the right side (when the trough is viewed from the front). It can be supplied with a siphon on the left side on request.
The troughs are made of stainless steel class ČSN 17240 (AISI 304). Made of other materials to order (eg AISI 316).
Washing basins AUL 03 are designed for installation in bathrooms and locker rooms of food processing plants.
VERSIONS:
| AUL 03S.1 | automtic trough 1250 mm – 2 taps with thermostat valve – 12V, 50 Hz |
| AUL 03S.2 | automtic trough 1900 mm – 3 taps with thermostat valve – 12V, 50 Hz |
| AUL 03S.3 | automtic trough 2500 mm – 4 taps with thermostat valve – 12V, 50 Hz |
| AUL 03S.4 | automtic trough 3000 mm – 5 taps with thermostat valve – 12V, 50 Hz |
| AUL 03Z.1 | automtic hanging trough 1250 mm – 2 taps with thermostat valve – 12V, 50 Hz |
| AUL 03Z.2 | automtic hanging trough 1900 mm – 3 taps with thermostat valve – 12V, 50 Hz |
| AUL 03Z.3 | automtic hanging trough 2500 mm – 4 taps with thermostat valve – 12V, 50 Hz |
| AUL 03Z.4 | automtic hanging trough 3000 mm – 5 taps with thermostat valve – 12V, 50 Hz |
SHEMA:
A – cold water
B- warm water
C – el. voltage
D – drainage
