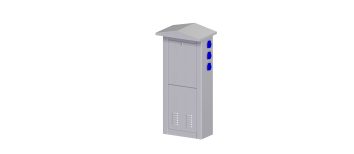

MSE 2N are stainless steel columns for unpaid electricity discharge. Standard versions offer 2, 4 or 6 electrical sockets, including overcurrent and short circuit protection, as well as a circuit breaker. Electric loop cables are possible inside the columns, so it is not necessary to connect each column with an individual electric cable from the central switchboard.
Each column is equipped with a small roof that protects the plinth from direct rain and with an opening in the lower part for ventilation. It can also be equipped with a light on request.
MSE 2N are made of AISI 304 stainless steel. Other materials (eg AISI 316) are available on request. For cleaning, we have recommended WÜRTH detergents – material preservation (No. 0893 121 K) and material cleaning (No. 893 121 1).
- stainless steel columns
- protection switch and short circuit protection for each socket
- electrical sockets and connectors
- anchor construction
|Max. outer dimensions||440 × 300 × 970 mm|
|Input voltage||3× 400 V, 50 Hz, TN-S|
|Max. cable cross-section||5× 25 mm²|
|Supply cable loops||da|
|Output voltage||230 V|
|Output current||10 A|
- Installed concrete base for the installation of anchor bolts
- Place the supply cable in the middle (± 50 mm) of the column base
- C –
Electric input cable
