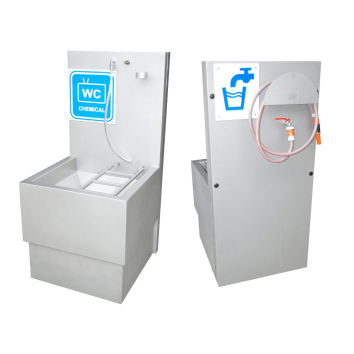

VLK 04 is a robust free-standing stainless steel sink for chemical toilets (floor mounting frame included). VLK 04 is composed of two parts. The first part is intended for the disposal of containers from chemical toilets and their cleaning, it has a specially designed siphon for quick drainage, a folding grille, a hose and a bucket stopper for the bucket. The second part is used to discharge drinking water (on the other hand). It is equipped with a hose, a ball valve and a hose carrier. Both parts are marked. The DN 100 drain contains an odor damper inside the sink and is then directed downwards. Therefore, the waste siphon can be connected downstream from either side. The water supply is connected via a ball valve G 1/2. The sink is removable (in winter, frost prevention). It is made of stainless steel AISI 304 (AISI 316 to order).
DELIVERY INCLUDES:
– sink, hose valve – 2 pcs, connecting hoses, 1/2 “valve with filter, hose holder, fastening accessories
SCHEME:
A – supply
D – drainage
