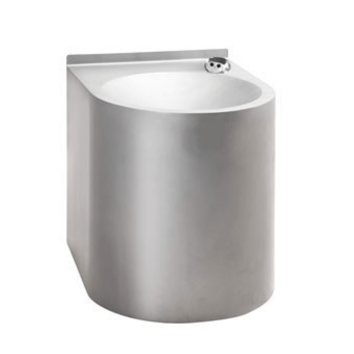

The drinking water fountain with a sensor AFO 01.Y is a non-contact design stainless steel drinking fountain. Tilting over the sensor releases the water.
The drinking fountain has an integrated look – it is made of one piece of material.
Power is supplied with a safe voltage of 12 V, 50 Hz from the ZAC power supply (AFO 01.Y) or from a 4 AA battery (AFO 01.YB).
The material is AISI 304 (AFO 01.Y or AFO 01.YB) or 316 (AFO 01.Y.CL or AFO 01.YB.CL), depending on the type.

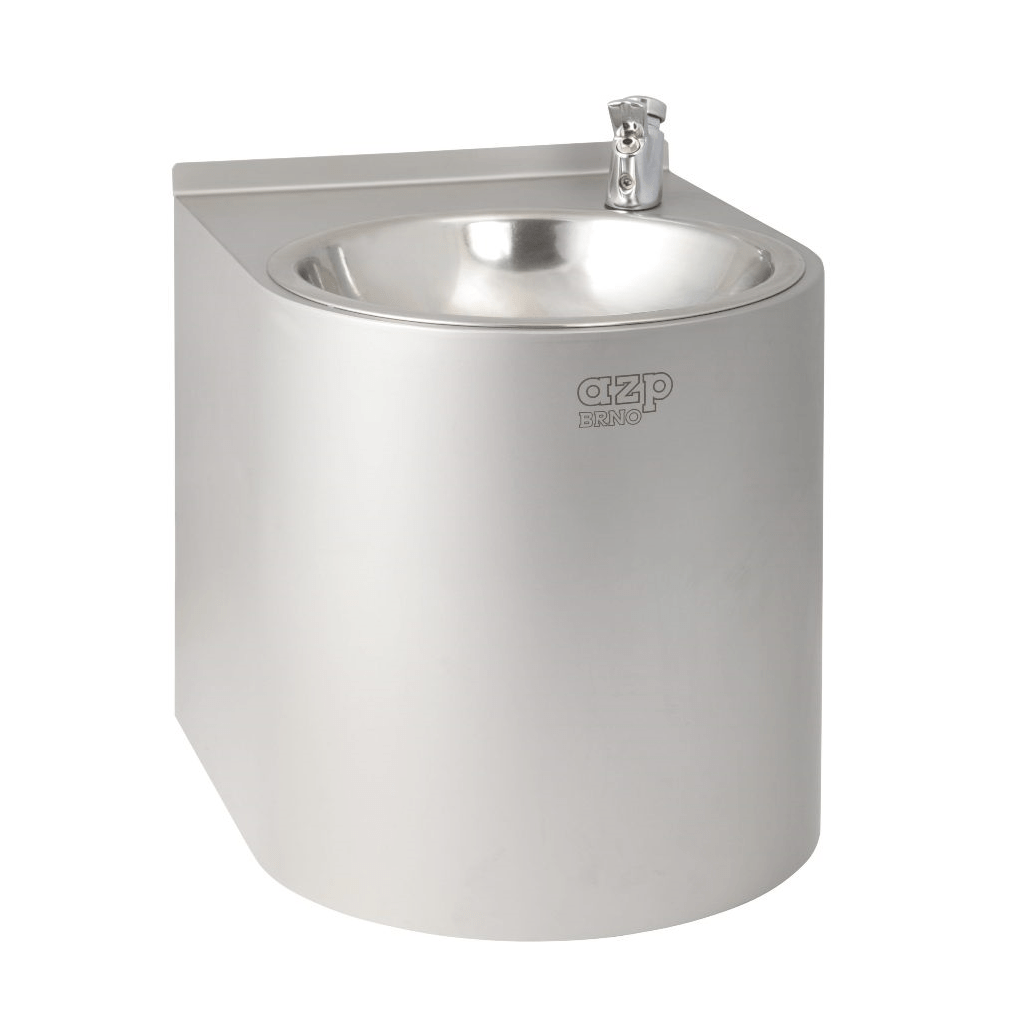

The stainless steel drinking water fountain with a sensor AFO 01.Y is based on the popular version with a pressure valve AFO 01.
The sensor located on the right side of the drinking fountain responds to the approach, and drinking water comes out of the nozzle in the middle of the container while the user has his head in the sensor zone (maximum 30 seconds) + for a set time (maximum 4 seconds) the nozzle is flushed.
SCHEMATIC:
