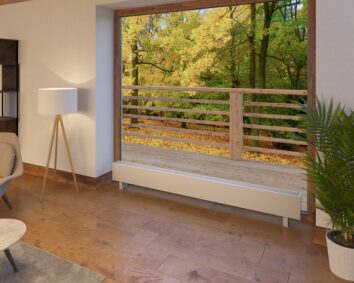

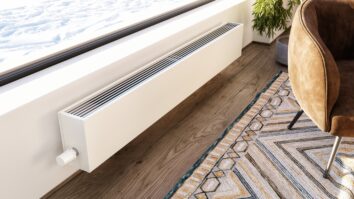

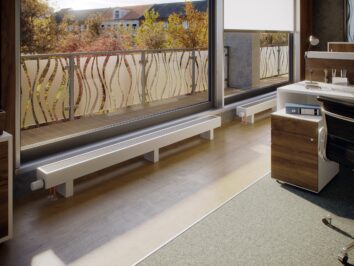

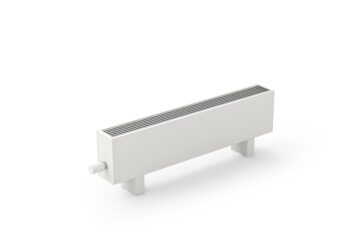

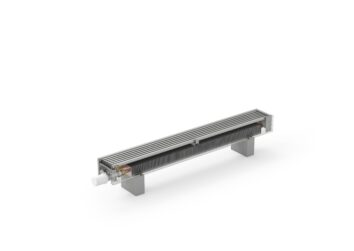

The freestanding convector KORALINE Optimal LKO is a range of low-temperature convector models offering an optimal combination of design and thermal power. The KORALINE Optimal LKO model range is made of galvanized steel and is equipped with a high-quality silver-coloured grille made of anodized aluminum. Due to their diverse portfolio and optimal power, the convectors of this series are ideal for heating private houses, as well as residential and commercial buildings.

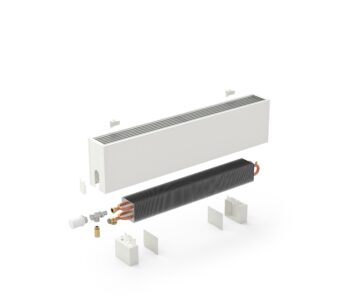

Delivery includes
- silver-coloured anodized aluminum grille
- galvanized steel case (lacquered with RAL 9016 white)
- magnetic side cover in the same color as the case
- axial thermostatic valve, thread M 30 × 1,5
- extension nipple for convectors from 150 mm in height

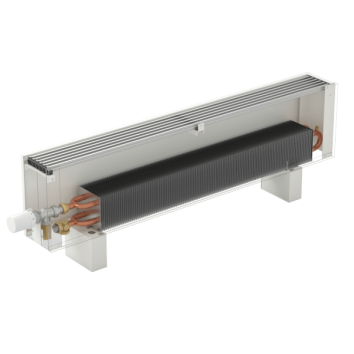

- Al/Cu heat exchanger for universal connections, low water content, bleed valve, uniquely shaped fins for max. heat output
- floor-level brackets
- wall fixing mounts for convectors from 400 mm in height* safely packaged with assembly instructions
Optional accessories
- floor-level bracket casing
- thermostatic head
- further RAL lacquers for casings available
- wall brackets
- sub-floor brackets
- elbow or straight lockshield
- elbow or straight thermostatic valve
- TEP 230 or TEP 24 thermoelectric actuator
- SIEMENS RAA21 or RDE 100.1 room thermostat
- QAA32 room temperature sensor
- thermostatic head with incorporated control and immersion remote sensor
| Height [mm] | 90, 150, 230, 300, 400, 500 mm |
| Width [mm] | 80, 130, 180, 230 mm |
| Length [mm] | 600, 700, 800, 900, 1 000, 1 100, 1 200, 1 400, 1 600, 1 800, 2 000, 2 200, 2 400, 2 600, 2 800, 3 000 mm |
| Heat output [W] | od 149 do 6 612 W |
| Maximum working pressure [MPa] | 1,2 MPa |
| Maximum working temperature [°C] | 110 °C |
| Maximum surface temperature [°C] | 40 °C |
| Connection thread | inner G 1/2″ |
| Connection types | bottom (recommended), side |
Table of heat outputs for given dimensions of the convector.
