Pomična higijenska barijera PORTATIVE
Pomična higijenska barijera PORTATIVE

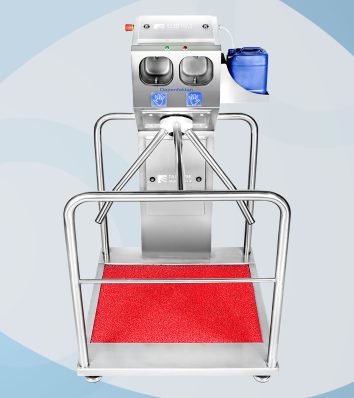

PORTATIVE Portable Hygiene Barrier
It is a very useful practical machine thanks to its easy installation and portability. In addition to being a tourniquet, it offers disinfection for both hands. Portable hygiene barrier can be easily used in places where it is needed.
It is a very useful practical machine thanks to its easy installation and portability. In addition to being a tourniquet, it offers disinfection for both hands. Portable hygiene barrier can be easily used in places where it is needed.
What is Portative for?
Tanriver Portable Hygiene Barrier is designed especially for use in narrow spaces, escape and emergency roads. It can be used as a practical solution where traditional turnstiles do not allow passage in emergency situations. It also provides mandatory two-handed disinfection and helps to maintain hygienic environment with a curly dry hygienic mat for cleaning the sole of shoes.
Working Method and Properties
Only 220Volt electricity is needed to operate the device, if this requirement is met this hygiene barrier can be moved to any area you want or need and start to use it very easily.
Sole of shoes are cleaned only with a dry curly hygienic mat. For hand disinfection, both hands should be inserted into the 2 separate compartments that are located in front of the machine at the same time; the solution is sprayed as soon as the hands are detected by the sensors. There are Red / Green LED warning lamps showing that the process is done and completed or not. After the hands disinfection process of the person was completed, only then turnstile will be unlocked and allow the passage.
Product Benefits
- cleaning the sole of the shoes via the dry hygiene mat and the disinfection of the hands take place together.
- Curly Dry Hygiene Mat that can be easily changed.
- Provides hygiene quickly and efficiently in any location needed within the facility. It can be easily transported and installed anywhere.
- Mandatory step for disinfection of both hands simultaneously, and the dose of the hand disinfectant can be determined (it does not function with one hand only and all spray parameters can be adjusted.)
- It does not allow the passage if the disınfection process was not completed.
- There is a turnstile lock that can be adjusted for free exit according to the preference; the turnstile released time also can be adjusted.
- Machine Dimensions are 960mm (L) x 960mm (W) x 1508 mm (H).
- There is an emergency stop button for emergency escapes.
- Ergonomic special Stainless Ball Joint Feet are available.
- On one side of the device, there is a stainless carrier plate for disinfectant container.
- Height adjustable via Stainless Steel Round Joint legs.
Povezani proizvodi
Higijenska barijera EDT-TYC-100
EDT-TYC-100 Higijenska barijera s dezinfekcijskim sredstvom za ruke, četka za čišćenje čizma i potplata te prolaznom rampom
EDT-TYC-100 Hygiene Barrier with Hand Disinfectant Turnstile, Boot & Sole Cleaning Brushes
This Hygiene Barrier provides a fast and hygienic entrance to the workshop thanks to 3 brushes mounted vertically and 2 horizontally mounted brushes which are rotating mutually.
Thanks to the integrated dosing pump, all brushes are sprayed with a mixture of water and detergent during operation. The working time of the brushes can be manually adjusted to 01-10 seconds. The operation is started and stopped with the sensors at the start and end points.
This Hygiene Barrier designed to provide a high degree of safety by the mandatory passing of personnel through all hygienic controls included mandatory hands disinfection program ensures the best cleaning of the shoe soles as well as disinfection for hands. It provides a fast and hygienic entrance to the workshop thanks to 3 vertically mounted brushes and 2 horizontally mounted brushes which are rotating mutually.
Thanks to the integrated dosing pump, all brushes are sprayed with a mixture of water and detergent during operation. The working time of the brushes can be manually adjusted to 01-10 seconds. The operation is started and stopped with the sensors at the start and end points.
Working Method and Properties
To prevent the bristles from breaking off, the brushes are about 8cm above the rotating cylinders which are installed in depth. Thanks to the Integrated Dosing Pump, the solution consisting of a mixture of Water and Chemical cleaning agent is sprayed onto the brushes. You can also check the density of the cleaning agent through the nozzles.
The working time of the brushes can be adjusted manually from the program, for 01 to 10 seconds or longer. Special Sensors at the starting points start the operation. This model has about 100cm long brushes. Rotating brushes are automatically activated by the sensors. The next step is hand disinfection and the last step is free passage through the turnstile.
Thanks to the turnstile system and the automatic processing process, the staff enter the workshop serially, without waiting in line. The brushes on the system are long-lasting and resistant to breakage / spillage.
Product Benefits
- Working time of the brushes that clean the shoes / boots soles can be adjusted as desired.
- Brushes can be easily removed and installed without the need for an additional tool.
- With the special brushing system that penetrates deep into the floors, the floors are cleaned in a guaranteed way.
- Thanks to its deeply mounted brush bristles, it offers a long service life.
- A mandatory hand disinfection is provided simultaneously, the system does not operate with one hand, so it provides absolute disinfectant
- Hand disinfection time can be adjusted.
- The system, which does not allow manual intervention from the outside, guarantees a safe disinfection.
- In case of emergencies such as power cuts and “EMERGENCY STOP” button activation, the turnstile provides free passage in both directions.
- It is possible to open or lock the output direction according to preference.
- Our product has a quality and hygienic surface structure thanks to its Stainless Steel special Satin surface.
Machine Dimensions: 2750mm (length) x 1250mm (width) x 1750mm (height)
Higijenska barijera EKO-EDT-TY-100
EKO-EDT-TY-100 Higijenska barijera s dezinfekcijskim uređajem za ruke i četkama za čišćenje potplata
EKO-EDT-TY-100 Hygiene Barrier with Hand Disinfectant Turnstile and Sole Cleaning Brushes
This Hygiene Barrier with its two horizontally mounted and mutually rotating brushes provides a deep cleaning and sanitation for Shoe / Boot or Slipper soles with. Hygiene, which is a must for protection within the workshop, is maintained at a high level. It is designed to provide a high degree of safety by the mandatory passing of personnel through all hygienic controls included mandatory hands disinfection program ensures the best cleaning of the shoe soles as well as disinfection for hands
What does the EKO- EDT-TY-100 do?
This Hygiene Barrier with its two horizontally mounted and mutually rotating brushes provides a deep cleaning and sanitation for Shoe / Boot or Slipper soles with. Hygiene, which is a must for protection within the workshop, is maintained at a high level. It is designed to provide a high degree of safety by the mandatory passing of personnel through all hygienic controls included mandatory hands disinfection program ensures the best cleaning of the shoe soles as well as disinfection for hands.
Working Method and Properties
To prevent the bristles from breaking off, the brushes are about 8cm above the rotating cylinders which are installed in depth. Thanks to the Integrated Dosing Pump, the solution consisting of a mixture of Water and Chemical cleaning agent is sprayed on the brushes during the operation. You can also adjust the density of the cleaning agent through the dozing valves. The working time of the brushes can be adjusted manually from the program, for 01 to 10 seconds or longer. Special Sensors at the starting points start the operation. This model has about 100cm long brushes. Rotating brushes are automatically activated by the sensors. The next step is hand disinfection and the last step is free passage through the turnstile. Thanks to the turnstile system and the fully automatic speedy process, the staff enter the workshop serially, without waiting in line. The brushes on the system are long-lasting and resistant to breakage / spillage.
Hand Disinfection
Our hygiene barrier machine is also equipped with a hand disinfectant turnstile system. Besides shoe sole cleaning, you can disinfect your hands. Thus, disinfecting hands becomes an imperative and uncontrolled passage of persons who have not properly disinfected is not allowed systematically.
Thanks to the hand disinfection unit, disinfectant is applied automatically at the determined dosage, so that only people whose hands are properly cleaned can be entered into sensitive production areas.
Turnstile turns freely at the exit from the Workshop to the Social Area direction and can be closed as desired. In “Power Cuts” and “Emergency” situations, the turnstile will allow free passage in both directions.
Product Benefits
- Working time of the brushes that clean the shoes / boots soles can be adjusted as desired.
- Brushes can be easily removed and installed without the need for an additional tool.
- With the special brushing system that penetrates deep into the soles, the shoes’ sole are cleaned in a guaranteed way.
- Thanks to its deeply mounted brush bristles, it offers a long service life.
- A mandatory hand disinfection is provided simultaneously, the system does not operate with one hand, so it provides absolute disinfectant.
- Hand disinfection time can be adjusted.
- The system, which does not allow manual intervention from the outside, guarantees a safe disinfection.
- In case of emergencies such as “Power Cuts” and “Emergency” by activation of EMERGENCY STOP button, the turnstile provides free passage in both directions.
- There is a turnstile lock that can be adjusted for free exit according to the preference; the turnstile released time also can be adjusted.
- Our product has a quality and hygienic surface structure thanks to its Stainless Steel special Satin surface.
Higijenska barijera sa umivaonikom SA-EPE
Higijenska barijera sa umivaonikom SA-EPE sa uređajem za sušenje ruku, uređajem za dezinfekciju ruku i okretnom rampom
SA-EPE Hygiene Barrier with Sink, Jet Dryer, Hand Disinfection Device with Turnstile and Pool with Mat
Hygiene Line Knee sensor sink, paper towel holder and dustbin, liquid soap dispenser, special tourniquet with hand disinfectant, curly hygiene mat, chemical dosing. Complete 304 quality stainless Double hand mandatory disinfectant compartments Approximate dimensions: 2100mm (length) x 1100mm (width) x 1750mm (height).
Protective steel bars Electrical panel Emergency stop button PLC control system Mandatory hand wash
SA EPE Sink ,Hand Disinfectant Turnstile ,and Hygiene pool with Mat
Hygiene Line Knee sensor sink, paper towel holder and dustbin, liquid soap dispenser, special tourniquet with hand disinfectant, curly hygiene mat, chemical dosing. Complete 304 quality stainless Double hand mandatory disinfectant compartments Approximate dimensions: 2100mm (length) x 1100mm (width) x 1750mm (height).
Protective steel bars Electrical panel Emergency stop button PLC control system Mandatory hand wash
Technical specifications
- Approximate Dimensions: 2100mm (length) x 1100mm (width) x 1750mm (height)
- 01 knee-level hand wash sink with sensor
- 1.5mm and 4.0mm hair thickness
- 4 point disinfectant spray
- Emergency stop button • Hygienic mat for foot pool
- Adjustable stainless feet
- Two-hand mandatory disinfectant compartments
- Photocell liquid soap dispenser
- Strong chassis, isolated welded, industrial design
- Automatic solution and water dosing inside the pool
- IP 65 protection class
- Complete 304 quality stainless steel material.
- Optional falling arm turnstile
- Automatic dirty water discharge system
- Stainless steel 3 twist turnstile arm, special design.
- Stainless steel bars (balustrade)
- PLC control system with Siemens logo
- One hundred percent hygiene obligation with trigger system
- Green and red led signal lights
- Z paper towel holder dustbin combination
- Timed spraying
Higijenska barijera SA-TG-70
Higijenska barijera SA-TG-70 sa četkama za čišćenje čizmi i potplata
SA-TG-70 Hygiene Barrier with Boot & Sole Cleaning Brushes
This Hygiene Barrier provides a fast and hygienic entrance to the workshop thanks to 3 brushes mounted vertically and 2 horizontally mounted brushes which are rotating mutually.
Thanks to the integrated dosing pump, all brushes are sprayed with a mixture of water and detergent during operation. The working time of the brushes can be manually adjusted to 01-10 seconds. The operation is started and stopped with the sensors at the start and end points
This Hygiene Barrier provides a fast and hygienic entrance to the workshop thanks to 3 brushes mounted vertically and 2 horizontally mounted brushes which are rotating mutually.
Thanks to the integrated dosing pump, all brushes are sprayed with a mixture of water and detergent during operation. The working time of the brushes can be manually adjusted to 01-10 seconds. The operation is started and stopped with the sensors at the start and end points.
Kompaktna higijenska barijera COMPACT-TAF
COMPACT-TAF kompaktna higijenska barijera s umivaonikom, sušilom za ruke, uređajima za dezinfekciju ruku i potplata
COMPACT-TAF Compact Hygiene Barrier with Sink, Jet Dryer, Hand and Sole Disinfectant
Our machine is designed as a comprehensive hygiene station that includes hand washing, hand drying and hand disinfectant turnstile and shoe sole cleaning system. The sink works with the sensor, and the hand disinfection station offers washing, drying and disinfection processes together via sensors without the need for any physical contact.Our machine is designed as a comprehensive hygiene station that includes hand washing, hand drying and hand disinfectant turnstile and shoe sole cleaning system. The sink works with the sensor, and the hand disinfection station offers washing, drying and disinfection processes together via sensors without the need for any physical contact.
Extremely useful, easy-to-maintain and cost-effective. TARIVER stainless steel hygiene barriers offer suitable solutions for businesses that want to comply with high hygiene standards.
What does COMPACT-TAF hygiene barrier do?
This hygiene barrier has the advantage of making sanitation mandatory by placing it in places where there are frequent passes, at the entrances and exits of the workshop, to ensure the 100% Hygiene environment.
In high-capacity production facilities, without allowing staff to waste time and wait in line; All sanitation steps are completed without physical contact with sole cleaning brushes, hand washing, hand disinfection and jet dryer. Thus, hygiene is maintained by ensuring maximum employee sterilization in optimum time.
COMPACT-TAF Working Method and Properties
Disinfectant is sprayed when hands are inserted into the disinfectant compartments in the hygiene barrier. Disinfectant is not sprayed and the turnstile is not opened without putting both hands into the device at the same time. Furthermore the disinfection device does not work if the personnel skipped the hands wash step. Liquid Soap is mixed with the running tap water for 3 seconds while the hands are washed, after 3 seconds rinse water automatically flows. In this way, hands must be washed with soap and then disinfected.
Shoes’ Sole are cleaned with a mixture of water and chemicals sprayed to 1000mm brushes, there is a 42mm drain pipe beneath the brushes that is discharging the waste water from the machine.
The compact hygiene station combines all the components needed for the personal hygiene of a person who is entering the production area.
Hand Disinfection
Thanks to the sensors, chemicals are not used in vain and there is no waste of time. After mandatory step of washing your hands with soap, you are required to mandatory disinfect your hands in the disinfection compartments. The turnstile is released only after all the mandatory hygiene steps are completed.
Product Benefits
- Hands are washed with 100% soap, therefore no soap-free passage takes place.
- Washing and disinfecting the hands as well as washing the soles of the shoes takes place in one combined system.
- It operates with sensor control, therefore hand washing, drying and disinfection processes are carried out without any contact by hands.
- Hands Dry step is presented with Jet Hand dryer.
- Brushes penetrating deep into shoe soles are at a minimum level of contraction and thorough cleaning is provided.
- A mandatory hand disinfection is provided simultaneously, and the spray time of the hand disinfectant can be programmed optionally.
- The turnstile lock that can be adjusted for the free exit according to preference.
- Turnstile released permit duration can be adjusted.
- Our product has a quality and hygienic surface structure thanks to satin stainless steel. Infection and contamination risk is minimized.
- Adjustable chemical dosage is possible. It offers washing, drying and disinfection processes together via sensors without any need for physical contact with the hands, eliminating the risk of contamination.
Machine Dimensions: 2150mm (length) x 1000mm (width) x 1950mm (height)
