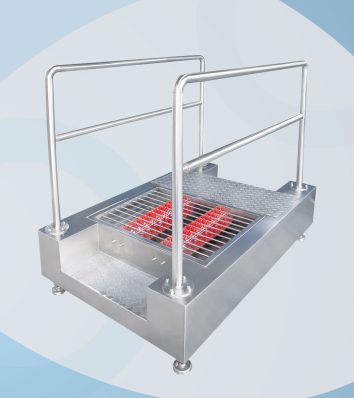

This Hygiene Barrier with its two horizontally mounted and mutually rotating brushes provides a deep cleaning and sanitation for Shoe / Boot or Slipper soles with. Hygiene, which is a must for protection within the workshop, is maintained at a high level. It is designed to provide a high degree of safety by the mandatory passing of personnel through all hygienic controls included mandatory hands disinfection program ensures the best cleaning of the shoe soles as well as disinfection for hands What does the EKO- EDT-TY-100 do? This Hygiene Barrier with its two horizontally mounted and mutually rotating brushes provides a deep cleaning and sanitation for Shoe / Boot or Slipper soles with. Hygiene, which is a must for protection within the workshop, is maintained at a high level. It is designed to provide a high degree of safety by the mandatory passing of personnel through all hygienic controls included mandatory hands disinfection program ensures the best cleaning of the shoe soles as well as disinfection for hands.  Working Method and Properties To prevent the bristles from breaking off, the brushes are about 8cm above the rotating cylinders which are installed in depth. Thanks to the Integrated Dosing Pump, the solution consisting of a mixture of Water and Chemical cleaning agent is sprayed on the brushes during the operation. You can also adjust the density of the cleaning agent through the dozing valves. The working time of the brushes can be adjusted manually from the program, for 01 to 10 seconds or longer. Special Sensors at the starting points start the operation. This model has about 100cm long brushes. Rotating brushes are automatically activated by the sensors. The next step is hand disinfection and the last step is free passage through the turnstile. Thanks to the turnstile system and the fully automatic speedy process, the staff enter the workshop serially, without waiting in line. The brushes on the system are long-lasting and resistant to breakage / spillage. Hand Disinfection Our hygiene barrier machine is also equipped with a hand disinfectant turnstile system. Besides shoe sole cleaning, you can disinfect your hands. Thus, disinfecting hands becomes an imperative and uncontrolled passage of persons who have not properly disinfected is not allowed systematically. Thanks to the hand disinfection unit, disinfectant is applied automatically at the determined dosage, so that only people whose hands are properly cleaned can be entered into sensitive production areas. Turnstile turns freely at the exit from the Workshop to the Social Area direction and can be closed as desired. In “Power Cuts” and “Emergency” situations, the turnstile will allow free passage in both directions. Product Benefits

• Working time of the brushes that clean the shoes / boots soles can be adjusted as desired.
• Brushes can be easily removed and installed without the need for an additional tool.
• With the special brushing system that penetrates deep into the soles, the shoes’ sole are cleaned in a guaranteed way.
• Thanks to its deeply mounted brush bristles, it offers a long service life.
• A mandatory hand disinfection is provided simultaneously, the system does not operate with one hand, so it provides absolute disinfectant.
• Hand disinfection time can be adjusted.
• The system, which does not allow manual intervention from the outside, guarantees a safe disinfection.
• In case of emergencies such as “Power Cuts” and “Emergency” by activation of EMERGENCY STOP button, the turnstile provides free passage in both directions.
• There is a turnstile lock that can be adjusted for free exit according to the preference; the turnstile released time also can be adjusted.
• Our product has a quality and hygienic surface structure thanks to its Stainless Steel special Satin surface.

Hygiene Line Knee sensor sink, paper towel holder and dustbin, liquid soap dispenser, special tourniquet with hand disinfectant, curly hygiene mat, chemical dosing. Complete 304 quality stainless Double hand mandatory disinfectant compartments Approximate dimensions: 2100mm (length) x 1100mm (width) x 1750mm (height). Protective steel bars Electrical panel Emergency stop button PLC control system Mandatory hand wash SA EPE Sink ,Hand Disinfectant Turnstile ,and Hygiene pool with Mat  Hygiene Line Knee sensor sink, paper towel holder and dustbin, liquid soap dispenser, special tourniquet with hand disinfectant, curly hygiene mat, chemical dosing. Complete 304 quality stainless Double hand mandatory disinfectant compartments Approximate dimensions: 2100mm (length) x 1100mm (width) x 1750mm (height). Protective steel bars Electrical panel Emergency stop button PLC control system Mandatory hand wash  Technical specifications

• Approximate Dimensions: 2100mm (length) x 1100mm (width) x 1750mm (height)
• 01 knee-level hand wash sink with sensor
• 1.5mm and 4.0mm hair thickness
• 4 point disinfectant spray
• Emergency stop button • Hygienic mat for foot pool
• Adjustable stainless feet
• Two-hand mandatory disinfectant compartments
• Photocell liquid soap dispenser
• Strong chassis, isolated welded, industrial design
• Automatic solution and water dosing inside the pool
• IP 65 protection class
• Complete 304 quality stainless steel material.
• Optional falling arm turnstile
• Automatic dirty water discharge system
• Stainless steel 3 twist turnstile arm, special design.
• Stainless steel bars (balustrade)
• PLC control system with Siemens logo
• One hundred percent hygiene obligation with trigger system
• Green and red led signal lights
• Z paper towel holder dustbin combination
• Timed spraying

The SA ETG-70 boot and boot washing machine cleans both the soles and sides of shoes. Ensuring continuous access for personnel in accordance with hygiene standards, the system is an automatic, two-way hygiene barrier designed for thorough cleaning of the sides and soles of boots. The device, with two horizontally mounted, counter-rotating brushes and three vertically mounted brushes, ensures quick and hygienic access for personnel to the workshop or facility. The horizontal brushes can be easily removed and installed for daily cleaning and maintenance without requiring any additional tools. What is the Function of the SA-ETG-70 Hygiene Barrier with Hand Sanitizer, Sole, and Boot Wash? It ensures a hygienic entrance to the facility by cleaning the soles and sides of boots, and disinfecting hands. This machine allows your staff to proceed quickly and efficiently throughout the cleaning process. While the sides and soles of boots are thoroughly cleaned, it also provides the opportunity for hand disinfection. Based on a one-time walk-through cleaning principle, our machine provides fast and comprehensive sterilization with the option to clean the soles and sides of boots. This machine has the advantage of being placed in frequently used areas within the facility, such as at the entrances and exits of the workshop, to ensure the cleaning of shoes, making sanitation mandatory. Operating Principle and Features It operates with two horizontally mounted brushes and three vertically mounted brushes. The system is fully automatic and activated by sensors and valves. This process also prepares and releases the cleaning agent and water mixture. Boot sides and soles are cleaned in the following steps: Rotating side brushes move simultaneously to clean the sides of the boots, and horizontally rotating brushes move horizontally to clean the soles. A mixture of water and detergent is sprayed. The user moves forward to complete the cleaning of the soles and sides of the boots. The next step is hand disinfection, and the final step is the turnstile's ability to provide free passage. Hand Disinfection Our hygiene barrier machine is also equipped with a turnstile system with hand disinfectant. In addition to boot cleaning, you can also disinfect your hands. This makes hand disinfection a necessity, and those who have not properly disinfected are systematically denied entry. The hand disinfection unit automatically applies the specified dose of disinfectant, ensuring that only those with properly cleaned hands are allowed into sensitive production areas. The turnstile rotates freely at the exit from the production hall to the social area and can be closed if desired. In cases of "power outages" and "emergencies," the turnstile will allow free passage in both directions. Product Key Benefits The operating times of the brushes that clean the soles of the feet and the sides of the boots can be easily adjusted. The brushes can be easily removed and reattached without the need for any additional tools, making cleaning easy, fast, and extremely practical. The deeply mounted bristles ensure a long service life. Mandatory hand disinfection is simultaneously achieved, and since the system is not one-handed, it delivers complete disinfectant. The exit direction can be either open or locked, depending on your preference. Our product boasts a high-quality and hygienic surface thanks to its special satinized stainless steel surface. The risk of infection and contamination is minimized. Adjustable chemical dosing is available. A bypass entrance is available for those entering wearing shoes or slippers. It can be integrated with card, finger, and face recognition systems. It can be integrated with automatic doors.
