Our double direction turnstile product, which is designed for multiple passages and it is made entirely of stainless steel, while controlling the passages and makes hand disinfection a must. It guarantees safe disinfection of the hands with a two-handed disinfection mechanism that is resistant to manual intervention from the outside.

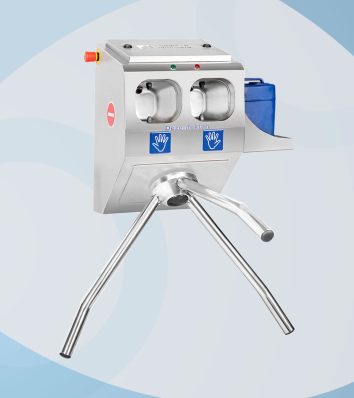

DUUBLE SIDE TURNSTILE

Our double direction turnstile product, which is designed for multiple passages and it is made entirely of stainless steel, while controlling the passages and makes hand disinfection a must. It guarantees safe disinfection of the hands with a two-handed disinfection mechanism that is resistant to manual intervention from the outside.

What is Double Side Turnstile For?

With Tanriver double direction turnstiles, a controlled transition of personnel is provided at the entrance of the factory or facility, and 2 hands are simultaneously disinfected in the compartments located in front of the disinfection device. The turnstile can be integrated with various card reading systems and automatic doors. It is manufactured to be mounted on the ground and is delivered to our customers ready for immediate operation and offers easy and fast installation.

Working Method and Properties

In order to pass through the turnstile, first hand disinfection must be completed. While one side of the turnstile does not allow passage through the turnstile without taking disinfectant, the other side is only designed for exiting from facility, or it can be used in different variations such as 2 sides’ soap/disinfection dispenser or 2 sides exit turnstile. 2 hands for hand disinfection are inserted into the 2 separate compartments in front the disinfection device at the same time, the solution is sprayed as soon as both hands are detected by the sensors. There are Red / Green LED warning lamps showing that the process is done and completed or not. After the hand disinfection process of the person completed, he/she is allowed to pass the turnstile. As the second step if the machine designed to dispense the soap, the personnel will be directed to the sink section for washing hands; therefore you can be sure that all the staff washes their hands with soap. On one side of the device, there is a stainless carrier plate for the disinfectant/soap container.

Product Benefits

• It provides both entry and exit control within the facility.
• Mandatory step for disinfection of both hands simultaneously, and the dose of the hand disinfectant can be determined (it does not function with one hand only and all spray parameters can be adjusted.)
• There is a turnstile lock that can be adjusted according to the exit direction and the preference; the turnstile time can be adjusted.
• The turnstile has a multifunctional LED light that indicates whether the unit is locked or unlocked. It provides ease of identification either one way or both.
• Machine Dimensions are 1788 mm (L) x 400mm (W) x 1400mm (H) and have a metal thickness of 1.5mm and 0.4mm.
• Stainless steel 3 twist turnstile arms are specially designed; falling arm turnstile can be adjusted according to preference. (PLC control system with Siemens logo)
• There is an Emergency stop button for emergency escapes.
• Thanks to its strong isolated welded industrial design, it is a long-lasting product and has high performance capability.
• Meets IP 65 protection class standards.

With the sink activated by the sensors at the knee level, water is prevented from wasting, so failure problems with mechanical or photocell faucets are also avoided. Water flows when the sink is stopped in front of the sink and the sensor detects the person, it stops when pulled, so it is the most reliable system.

What does  EPSET Hygiene Barrier do?

Our hygiene line with sink, mop and disinfectant turnstile provides a holistic hand washing and disinfection that effectively meets the hygiene standards of HACCP, BRC, IFS and NSF. The cleaning process includes extensive hand washing with soap and hand disinfection. For the transition to sensitive production areas, it ensures that only hand disinfection personnel are allowed with a tourniquet afterwards. With an automatic hand soap and disinfectant dispenser, our hand hygiene control solutions provide a convenient and cost-effective service.

Working Method and Properties

With the sink activated by the sensors at the knee level, water is prevented from wasting, so failure problems with mechanical or photocell faucets are also avoided. Water flows when the sink is stopped in front of the sink and the sensor detects the person, it stops when pulled, so it is the most reliable system.

There is a solution mat for cleaning the soles of our hygiene turnstile, which is completely made of stainless steel. Pool solution is filled and drained automatically in the foot pool part of this mat. Thus, the foot pool can clean itself regularly. Operations such as filling or emptying are not required by an operator manually. With the automatic preparation of the solution Water and Chemical, the dosage can be determined optionally.

Hand Disinfection and Hand Washing

Thanks to the hand disinfection unit, disinfectant is applied automatically at the determined dosage, so that only people whose hands are properly cleaned can be entered into sensitive production areas. Thanks to the two-hand mandatory disinfection zone, it is a must to disinfect both hands at the same time and maximum hygiene is provided.

The sink, liquid soap dispenser, paper towel holder and trash bin on the hygiene line allow the staff to wash their hands as they wish, ensuring hand sanitation.

Turnstile turns freely in the direction of the Social Area from the Workshop and can be closed according to preference. In “power cuts” and “EMERGENCY” situations, the turnstile provides free passage in both directions.

Product Benefits

•  Cleaning the soles of the shoes, washing the hands, disinfecting takes place in one step.
•  Sink, towel holder and trash can are placed for hand washing.
•  Standard MECHANICAL soap dispenser is offered, Photocell Soap Dispenser can be optional.
• Provides quick and efficient sanitation at the facility.
• Curly mop with chemical Solution inside provides deep cleaning of the sole of the feet.
• The foot pool chemical solution can fill and discharge automatically, thus saving labor and time, and maintaining contact-less hygiene conditions.
• A mandatory hand disinfection is provided for a mandatory 2 hands simultaneously, and the dose of the hand disinfectant can be determined.
• There is a turnstile lock that can be adjusted according to the exit direction and the preference, the turnstile time can be adjusted.
• 3 turnstile arms are stainless.
• Our product has a quality and hygienic surface structure thanks to stainless steel.
• The risk of infection and contamination is minimized.
• There is an emergency stop button for emergency escapes.
• There are ergonomic special Stainless ball Joint Feet that can be adjusted in height. 4mm diameter stainless steel railing is available.
• Machine Dimensions: 2150mm (length) x 1050mm (width) x 1700mm (height)

It is a very useful practical machine thanks to its easy installation and portability. In addition to being a tourniquet, it offers disinfection for both hands. Portable hygiene barrier can be easily used in places where it is needed.

It is a very useful practical machine thanks to its easy installation and portability. In addition to being a tourniquet, it offers disinfection for both hands. Portable hygiene barrier can be easily used in places where it is needed.

What is Portative for?

Tanriver Portable Hygiene Barrier is designed especially for use in narrow spaces, escape and emergency roads. It can be used as a practical solution where traditional turnstiles do not allow passage in emergency situations. It also provides mandatory two-handed disinfection and helps to maintain hygienic environment with a curly dry hygienic mat for cleaning the sole of shoes.

Working Method and Properties

Only 220Volt electricity is needed to operate the device, if this requirement is met this hygiene barrier can be moved to any area you want or need and start to use it very easily.

Sole of shoes are cleaned only with a dry curly hygienic mat. For hand disinfection, both hands should be inserted into the 2 separate compartments that are located in front of the machine at the same time; the solution is sprayed as soon as the hands are detected by the sensors. There are Red / Green LED warning lamps showing that the process is done and completed or not. After the hands disinfection process of the person was completed, only then turnstile will be unlocked and allow the passage.

Product Benefits

• cleaning the sole of the shoes via the dry hygiene mat and the disinfection of the hands take place together.
• Curly Dry Hygiene Mat that can be easily changed.
• Provides hygiene quickly and efficiently in any location needed within the facility. It can be easily transported and installed anywhere.
• Mandatory step for disinfection of both hands simultaneously, and the dose of the hand disinfectant can be determined (it does not function with one hand only and all spray parameters can be adjusted.)
• It does not allow the passage if the disınfection process was not completed.
• There is a turnstile lock that can be adjusted for free exit according to the preference; the turnstile released time also can be adjusted.
• Machine Dimensions are 960mm (L) x 960mm (W) x 1508 mm (H).
• There is an emergency stop button for emergency escapes.
• Ergonomic special Stainless Ball Joint Feet are available.
• On one side of the device, there is a stainless carrier plate for disinfectant container.
• Height adjustable via Stainless Steel Round Joint legs.
