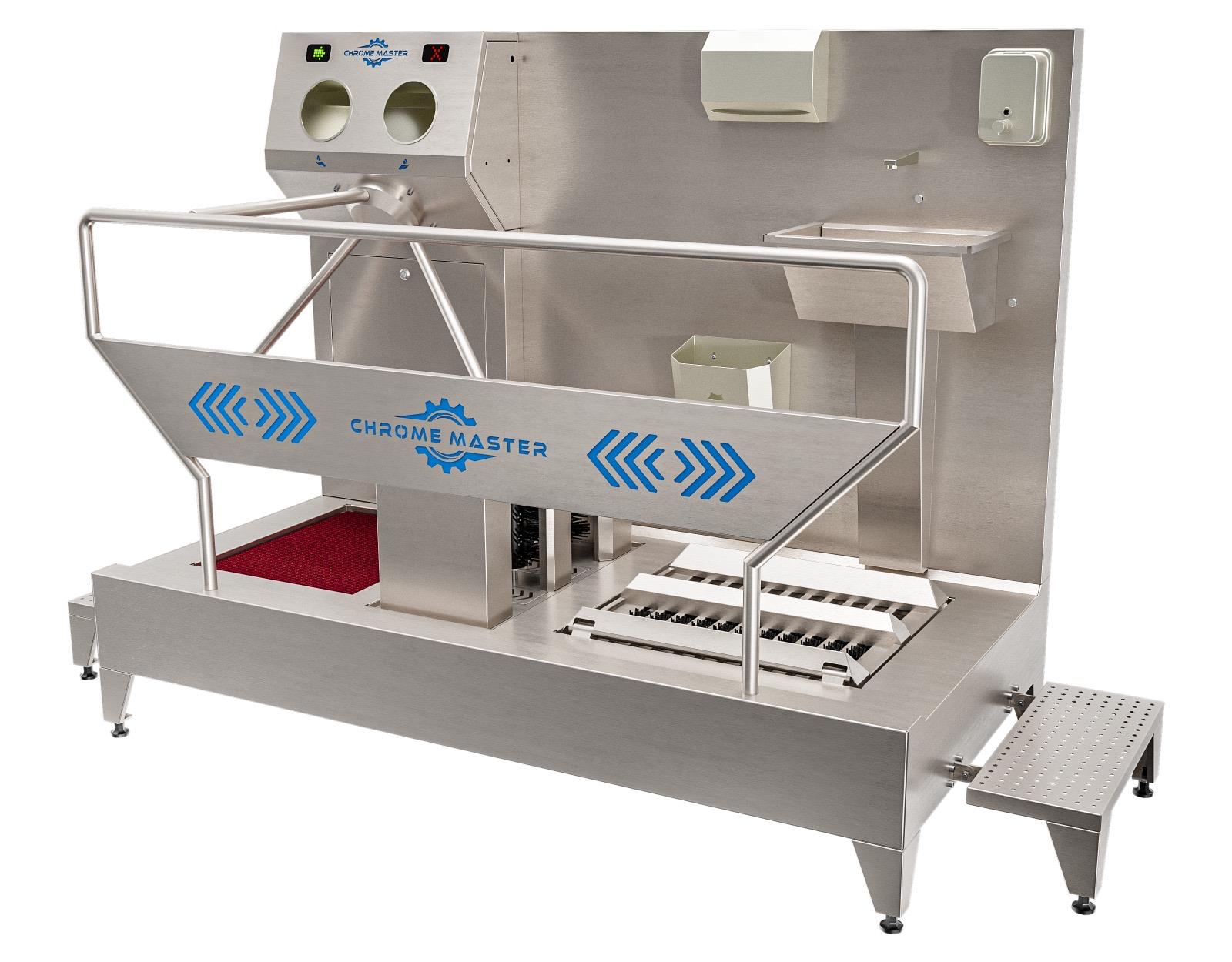

Industrijska higijenska barijera s vodoravnim i okomitim četkama CMH204
Industrijska higijenska barijera od nehrđajućeg čelika (Inox) osigurava potpunu kontrolu higijene osoblja na ulazu u čiste i proizvodne zone. Opremljena je sustavom rotirajućih vodoravnih i okomiti četki za temeljito pranje i četkanje podpotplata te bočnih strana obuće i čizama, bezkontaktno pranim umivaonikom i automatskom obostranom dezinfekcijom ruku integriranom s turniket barijerom.
Higijenska barijera CMH204 cjelovito je rješenje dizajnirano za zadovoljavanje strogi standarda kontrole kvalitete (HACCP, IFS, BRC) u prehrambenoj, farmaceutskoj i kemijskoj industriji.
Kombinacija vodoravnih (podnih) i okomiti (bočnih) četki osigurava detaljno čišćenje i uklanjanje tvrdokorne prljavštine s potplata, rubova i gornjeg dijela radne obuće i čizama.
Ključne funkcionalnosti:
-
Obavezni higijenski slijed (PLC kontrola): Prolazni sustav koristi integrirani PLC upravljački modul s vremenski podesivim fazama. Turniket barijera sprječava prolazak ako zaposlenik ne izvrši sve korake po definiranom redoslijedu (obavezni redoslijed: četkanje obuće $\rightarrow$ pranje ruku $\rightarrow$ obostrana dezinfekcija ruku).
-
Prilagodljivo upravljanje: Vrijeme trajanja četkanja, ispiranja na umivaoniku i doze dezinficijensa mogu se pojedinačno podesiti na PLC sustavu.
-
Jednostavna demontaža četki: Četke su opremljene mehanizmom za brzo postavljanje i uklanjanje bez alata, što olakšava čišćenje, dezinfekciju i servisiranje samog uređaja.
-
Sigurnosni način rada: U slučaju nestanka napajanja električnom energijom, turniket se automatski otključava i omogućuje dvosmjerni slobodan prolaz.
Sadržaj standardnog seta
-
Kompletan senzorski umivaonik od nehrđajućeg čelika (Inox) za bezkontaktno pranje ruku
-
Sustav za automatsku obostranu dezinfekciju ruku (ubrizgavanje maglice)
-
Vodoravne i okomite rotirajuće četke za pranje obuće/čizama
-
Higijenska podloga / otirač za zadržavanje vlage
-
Ručni dozator tekućeg sapuna
-
Zidni držač Z-složenih papirnatih ručnika
Dodatna oprema (Opcionalno)
-
Senzorski (automatski) dozator tekućeg sapuna
-
Zidni držač / dozator jednokratnih navlaka za obuću (kaljača) i pregača
-
Industrijsko brza sušilica za ruke / kosu
Tehničke specifikacije
| Svojstvo | Specifikacija |
| Model | CMH204 |
| Materijal | Nehrđajući čelik (Inox / AISI 304) |
| Upravljanje | PLC upravljački modul |
| Aktivacija umivaonika | Bezkontaktna (Senzor / Fotocelija) |
| Sustav četkanja | Vodoravne (podne) + Okomite (bočne) rotirajuće četke |
| Dezinfekcija ruku | Automatska, obostrana |
| Sustav zaključavanja prolaza | Turniket barijera povezana s PLC-om |
| Hitni način rada | Dvosmjerni slobodan prolaz bez strujnog napajanja |
Povezani proizvodi
Dvostrana prolazna rampa sa uređajima za dezinfekciju ruku
Dvostrana prolazna rampa sa uređajima za dezinfekciju ruku
Double Side Turnstile
Our double direction turnstile product, which is designed for multiple passages and it is made entirely of stainless steel, while controlling the passages and makes hand disinfection a must. It guarantees safe disinfection of the hands with a two-handed disinfection mechanism that is resistant to manual intervention from the outside.
DUUBLE SIDE TURNSTILE
Our double direction turnstile product, which is designed for multiple passages and it is made entirely of stainless steel, while controlling the passages and makes hand disinfection a must. It guarantees safe disinfection of the hands with a two-handed disinfection mechanism that is resistant to manual intervention from the outside.
What is Double Side Turnstile For?
With Tanriver double direction turnstiles, a controlled transition of personnel is provided at the entrance of the factory or facility, and 2 hands are simultaneously disinfected in the compartments located in front of the disinfection device. The turnstile can be integrated with various card reading systems and automatic doors. It is manufactured to be mounted on the ground and is delivered to our customers ready for immediate operation and offers easy and fast installation.
Working Method and Properties
In order to pass through the turnstile, first hand disinfection must be completed. While one side of the turnstile does not allow passage through the turnstile without taking disinfectant, the other side is only designed for exiting from facility, or it can be used in different variations such as 2 sides’ soap/disinfection dispenser or 2 sides exit turnstile. 2 hands for hand disinfection are inserted into the 2 separate compartments in front the disinfection device at the same time, the solution is sprayed as soon as both hands are detected by the sensors. There are Red / Green LED warning lamps showing that the process is done and completed or not. After the hand disinfection process of the person completed, he/she is allowed to pass the turnstile. As the second step if the machine designed to dispense the soap, the personnel will be directed to the sink section for washing hands; therefore you can be sure that all the staff washes their hands with soap. On one side of the device, there is a stainless carrier plate for the disinfectant/soap container.
Product Benefits
- It provides both entry and exit control within the facility.
- Mandatory step for disinfection of both hands simultaneously, and the dose of the hand disinfectant can be determined (it does not function with one hand only and all spray parameters can be adjusted.)
- There is a turnstile lock that can be adjusted according to the exit direction and the preference; the turnstile time can be adjusted.
- The turnstile has a multifunctional LED light that indicates whether the unit is locked or unlocked. It provides ease of identification either one way or both.
- Machine Dimensions are 1788 mm (L) x 400mm (W) x 1400mm (H) and have a metal thickness of 1.5mm and 0.4mm.
- Stainless steel 3 twist turnstile arms are specially designed; falling arm turnstile can be adjusted according to preference. (PLC control system with Siemens logo)
- There is an Emergency stop button for emergency escapes.
- Thanks to its strong isolated welded industrial design, it is a long-lasting product and has high performance capability.
- Meets IP 65 protection class standards.

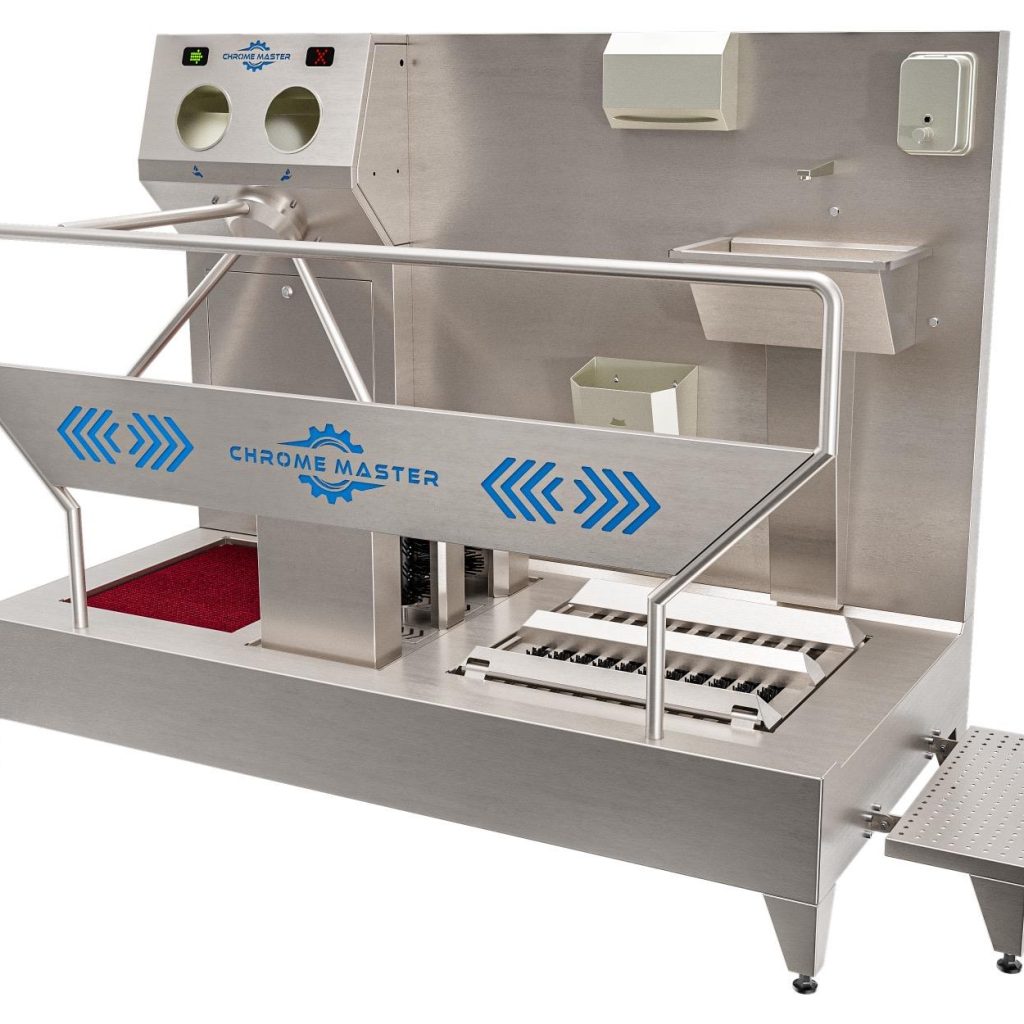

Industrijska higijenska barijera s okomitim i vodoravnim četkama CMH223
Kompletna higijenska stanica od nehrđajući čelika (Inox) namijenjena obaveznoj kontroli prolaza i dezinfekciji osoblja prije ulaska u proizvodne i čiste zone. Sustav osigurava učinkovito četkanje i čišćenje potplata te bočnih strana čizama i radne obuće, senzorsko pranje ruku te automatsku obostranu dezinfekciju ruku povezanu s prolaznom turniket barijerom.
