Our double direction turnstile product, which is designed for multiple passages and it is made entirely of stainless steel, while controlling the passages and makes hand disinfection a must. It guarantees safe disinfection of the hands with a two-handed disinfection mechanism that is resistant to manual intervention from the outside. DUUBLE SIDE TURNSTILE Our double direction turnstile product, which is designed for multiple passages and it is made entirely of stainless steel, while controlling the passages and makes hand disinfection a must. It guarantees safe disinfection of the hands with a two-handed disinfection mechanism that is resistant to manual intervention from the outside. What is Double Side Turnstile For? With Tanriver double direction turnstiles, a controlled transition of personnel is provided at the entrance of the factory or facility, and 2 hands are simultaneously disinfected in the compartments located in front of the disinfection device. The turnstile can be integrated with various card reading systems and automatic doors. It is manufactured to be mounted on the ground and is delivered to our customers ready for immediate operation and offers easy and fast installation. Working Method and Properties In order to pass through the turnstile, first hand disinfection must be completed. While one side of the turnstile does not allow passage through the turnstile without taking disinfectant, the other side is only designed for exiting from facility, or it can be used in different variations such as 2 sides’ soap/disinfection dispenser or 2 sides exit turnstile. 2 hands for hand disinfection are inserted into the 2 separate compartments in front the disinfection device at the same time, the solution is sprayed as soon as both hands are detected by the sensors. There are Red / Green LED warning lamps showing that the process is done and completed or not. After the hand disinfection process of the person completed, he/she is allowed to pass the turnstile. As the second step if the machine designed to dispense the soap, the personnel will be directed to the sink section for washing hands; therefore you can be sure that all the staff washes their hands with soap. On one side of the device, there is a stainless carrier plate for the disinfectant/soap container.   Product Benefits

• It provides both entry and exit control within the facility.
• Mandatory step for disinfection of both hands simultaneously, and the dose of the hand disinfectant can be determined (it does not function with one hand only and all spray parameters can be adjusted.)
• There is a turnstile lock that can be adjusted according to the exit direction and the preference; the turnstile time can be adjusted.
• The turnstile has a multifunctional LED light that indicates whether the unit is locked or unlocked. It provides ease of identification either one way or both.
• Machine Dimensions are 1788 mm (L) x 400mm (W) x 1400mm (H) and have a metal thickness of 1.5mm and 0.4mm.
• Stainless steel 3 twist turnstile arms are specially designed; falling arm turnstile can be adjusted according to preference. (PLC control system with Siemens logo)
• There is an Emergency stop button for emergency escapes.
• Thanks to its strong isolated welded industrial design, it is a long-lasting product and has high performance capability.
• Meets IP 65 protection class standards.

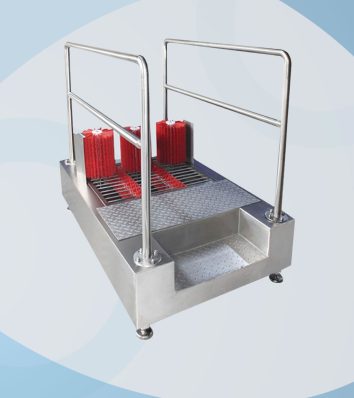

This Hygiene Barrier provides a fast and hygienic entrance to the workshop thanks to 3 brushes mounted vertically and 2 horizontally mounted brushes which are rotating mutually. Thanks to the integrated dosing pump, all brushes are sprayed with a mixture of water and detergent during operation. The working time of the brushes can be manually adjusted to 01-10 seconds. The operation is started and stopped with the sensors at the start and end points. This Hygiene Barrier  designed to provide a high degree of safety by the mandatory passing of personnel through all hygienic controls included mandatory hands disinfection program ensures the best cleaning of the shoe soles as well as disinfection for hands. It provides a fast and hygienic entrance to the workshop thanks to 3  vertically mounted brushes  and 2 horizontally mounted brushes which are rotating mutually. Thanks to the integrated dosing pump, all brushes are sprayed with a mixture of water and detergent during operation. The working time of the brushes can be manually adjusted to 01-10 seconds. The operation is started and stopped with the sensors at the start and end points.   Working Method and Properties To prevent the bristles from breaking off, the brushes are about 8cm above the rotating cylinders which are installed in depth. Thanks to the Integrated Dosing Pump, the solution consisting of a mixture of Water and Chemical cleaning agent is sprayed onto the brushes. You can also check the density of the cleaning agent through the nozzles. The working time of the brushes can be adjusted manually from the program, for 01 to 10 seconds or longer. Special Sensors at the starting points start the operation. This model has about 100cm long brushes. Rotating brushes are automatically activated by the sensors. The next step is hand disinfection and the last step is free passage through the turnstile. Thanks to the turnstile system and the automatic processing process, the staff enter the workshop serially, without waiting in line. The brushes on the system are long-lasting and resistant to breakage / spillage.   Product Benefits

• Working time of the brushes that clean the shoes / boots soles can be adjusted as desired.
• Brushes can be easily removed and installed without the need for an additional tool.
• With the special brushing system that penetrates deep into the floors, the floors are cleaned in a guaranteed way.
• Thanks to its deeply mounted brush bristles, it offers a long service life.
• A mandatory hand disinfection is provided simultaneously, the system does not operate with one hand, so it provides absolute disinfectant
• Hand disinfection time can be adjusted.
• The system, which does not allow manual intervention from the outside, guarantees a safe disinfection.
• In case of emergencies such as power cuts and “EMERGENCY STOP” button activation, the turnstile provides free passage in both directions.
• It is possible to open or lock the output direction according to preference.
• Our product has a quality and hygienic surface structure thanks to its Stainless Steel special Satin surface.

Machine Dimensions: 2750mm (length) x 1250mm (width) x 1750mm (height)

In this hygiene barrier, which is produced entirely of high quality stainless steel, foot sole cleaning, hand washing and hand disinfection are offered together. There are knee-sensor sink, liquid soap dispenser, and paper towel holder with dustbin parts. There is also a curly dry hygiene mat beneath the sink.  Thus, in alternative option you can also wash your hands and use the Jet dryer feature and then perform the disinfection process while standing on the secured and non-slippery brush system for sole cleaning purpose. In this hygiene barrier, which is produced entirely of high quality stainless steel, foot sole cleaning, hand washing and hand disinfection are offered together. There are knee-sensor sink, liquid soap dispenser, and paper towel holder with dustbin parts. There is also a curly dry hygiene mat beneath the sink.  Thus, in alternative option you can also wash your hands and use the Jet dryer feature and then perform the disinfection process while standing on the secured and non-slippery brush system for sole cleaning purpose. What does the FEPSET hygiene barrier do? It is a system that solves the hygiene needs of the personnel collectively in a single machine at the entrances and exits of the workshops and facilities. This hygiene station is designed specifically for plants in the food and beverages processing and industry and large-scale facilities that work in multiple shifts simultaneously. It is an extremely long-lasting and wear-resistant product that provides effective sanitation and hygiene protection to populated facilities with mandatory hygiene steps offered together. Working Method and Properties FEPSET hygiene barrier is a brushed type hygiene barrier that has mandatory hand wash and hand disinfection system. The sink is with knee sensor, the water starts to flow automatically when the person comes to the sink, and there is no need to contact the sink. Immediately after washing the hands, the hands are dried instantly with the Jet dryer / Paper Towel next to the sink. The system is completely touch-less, therefore there is no need of physical hands contact with the devices at any point. During the transition to disinfectant hygiene turnstile, foot sole washing brushes start to work. Shoes’ bottoms are washed by spraying a hygienic chemical and water mixture underneath. Disinfectant is sprayed when hands are inserted into the disinfectant compartments in the hygiene barrier. Disinfectant is not sprayed and the turnstile is not opened without putting both hands into the device. Furthermore the disinfection device does not work if the personnel skipped the hands wash step. Thus, there will be complete hands wash and disinfection. After all these processes are completed, turnstile is opened and the transition to the manufacturing section is allowed. This hygienic barrier, which can be used together with our other hygiene equipment on demand, provides absolute sanitation and saves you time. Hand Disinfection Thanks to the hand disinfection device, disinfectant is applied automatically at the determined dosage, so that only people whose hands are properly cleaned can be entered into sensitive production areas. Thanks to the sensors, chemicals are not used in vain and there is no waste of time. After mandatory step of washing your hands with soap, you are required to mandatory disinfect your hands in the disinfection compartments. The turnstile is released only after all the mandatory hygiene steps are completed.   Product Benefits

• Washing and disinfecting the hands as well as washing the soles of the shoes takes place in one combined system.
• Provides quick and efficient sanitation at the facility, and saves time at the entrance to the workshops.
• It operates with sensor control, therefore hand washing, drying and disinfection processes are carried out without any contact by hands.
• Hands Dry step are presented in 2 different ways as paper towel and trash bin or Jet Hand dryer as an option.
• Brushes penetrating deep into shoe soles are at a minimum level of contraction and thorough cleaning is provided.
• A mandatory hand disinfection is provided simultaneously, and the spray time of the hand disinfectant can be programmed optionally.
• The turnstile lock that can be adjusted for the free exit according to preference.
• Turnstile released permit duration can be adjusted.
• Our product has a quality and hygienic surface structure thanks to satin stainless steel. Infection and contamination risk is minimized.
• Adjustable chemical dosage is possible. It offers washing, drying and disinfection processes together via sensors without any need for physical contact with the hands, eliminating the risk of contamination.

Dimensions: 2150mm (length) x 1050mm (width) x 1700mm (height)

This device allows you to keep hand hygiene under control when passing to different areas in the workshop and between floors. Turnstile does not allow passage without being disinfected in the machine. Our product is completely made of stainless material. Hands are inserted into 2 separate compartments on the front of the machine at the same time, the disinfectant process starts as soon as the hands are detected by the photocells. There are Red / Green led warning lights on the hand disinfectant. When the hand disinfectant process is completed, the green warning lamp lights up, and thereafter Turnstile allow the free passage. If the hand disinfection process is not done correctly, the turnstile will never allow passage. This device allows you to keep hand hygiene under control when passing to different areas in the workshop and between floors. Turnstile does not allow passage without being disinfected in the machine. Our product is completely made of stainless material. Hands are inserted into 2 separate compartments on the front of the machine at the same time, the disinfectant process starts as soon as the hands are detected by the photocells. There are Red / Green led warning lights on the hand disinfectant. When the hand disinfectant process is completed, the green warning lamp lights up, and thereafter Turnstile allow the free passage. If the hand disinfection process is not done correctly, the turnstile will never allow passage. Both hands must be sensed and disinfected at the same time by the sensor for correct operation. On the right / left side of the device there is a stainless carrier plate for the disinfectant canister. Our device can be integrated with various card reading systems and automatic guillotine doors. The device is presented to be mounted on the ground and delivered ready for operation.
