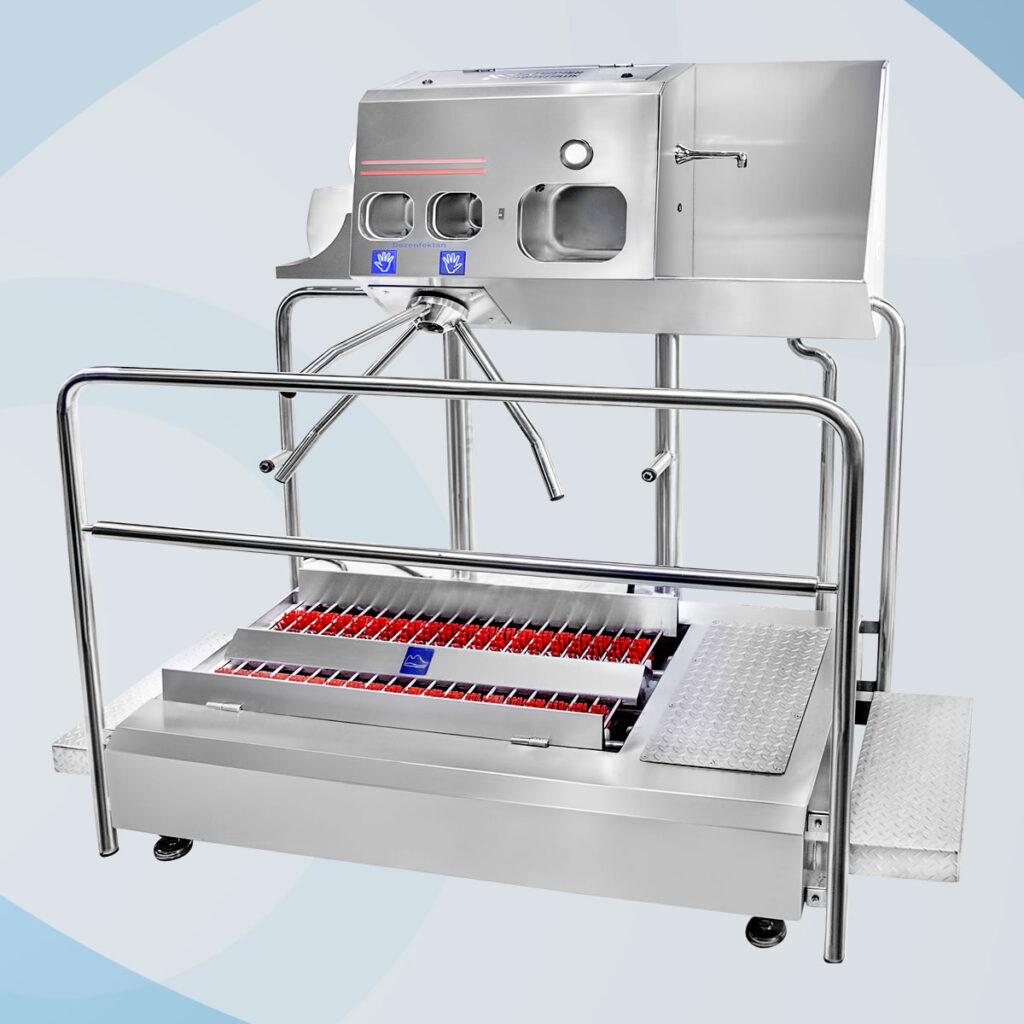

This Hygiene Barrier with its two horizontally mounted and mutually rotating brushes provides a deep cleaning and sanitation for Shoe / Boot or Slipper soles with. Hygiene, which is a must for protection within the workshop, is maintained at a high level. It is designed to provide a high degree of safety by the mandatory passing of personnel through all hygienic controls included mandatory hands disinfection program ensures the best cleaning of the shoe soles as well as disinfection for hands.

What does the EDT-TY-100 do?

This Hygiene Barrier with its two horizontally mounted and mutually rotating brushes provides a deep cleaning and sanitation for Shoe / Boot or Slipper soles with. Hygiene, which is a must for protection within the workshop, is maintained at a high level. It is designed to provide a high degree of safety by the mandatory passing of personnel through all hygienic controls included mandatory hands disinfection program ensures the best cleaning of the shoe soles as well as disinfection for hands.

Working Method and Properties

To prevent the bristles from breaking off, the brushes are about 8cm above the rotating cylinders which are installed in depth. Thanks to the Integrated Dosing Pump, the solution consisting of a mixture of Water and Chemical cleaning agent is sprayed on the brushes during the operation. You can also adjust the density of the cleaning agent through the dozing valves. The working time of the brushes can be adjusted manually from the program, for 01 to 10 seconds or longer. Special Sensors at the starting points start the operation. This model has about 100cm long brushes. Rotating brushes are automatically activated by the sensors. The next step is hand disinfection and the last step is free passage through the turnstile. Thanks to the turnstile system and the fully automatic speedy process, the staff enter the workshop serially, without waiting in line. The brushes on the system are long-lasting and resistant to breakage / spillage.

Hand Disinfection

Our hygiene barrier machine is also equipped with a hand disinfectant turnstile system. Besides shoe sole cleaning, you can disinfect your hands. Thus, disinfecting hands becomes an imperative and uncontrolled passage of persons who have not properly disinfected is not allowed systematically.

Thanks to the hand disinfection unit, disinfectant is applied automatically at the determined dosage, so that only people whose hands are properly cleaned can be entered into sensitive production areas.

Turnstile turns freely at the exit from the Workshop to the Social Area direction and can be closed as desired. In “Power Cuts” and “Emergency” situations, the turnstile will allow free passage in both directions.

Product Benefits

• Working time of the brushes that clean the shoes / boots soles can be adjusted as desired.
• Brushes can be easily removed and installed without the need for an additional tool.
• With the special brushing system that penetrates deep into the soles, the shoes’ sole are cleaned in a guaranteed way.
• Thanks to its deeply mounted brush bristles, it offers a long service life.
• A mandatory hand disinfection is provided simultaneously, the system does not operate with one hand, so it provides absolute disinfectant.
• Hand disinfection time can be adjusted.
• The system, which does not allow manual intervention from the outside, guarantees a safe disinfection.
• In case of emergencies such as “Power Cuts” and “Emergency” by activation of EMERGENCY STOP button, the turnstile provides free passage in both directions.
• There is a turnstile lock that can be adjusted for free exit according to the preference; the turnstile released time also can be adjusted.
• Our product has a quality and hygienic surface structure thanks to its Stainless Steel special Satin surface.
