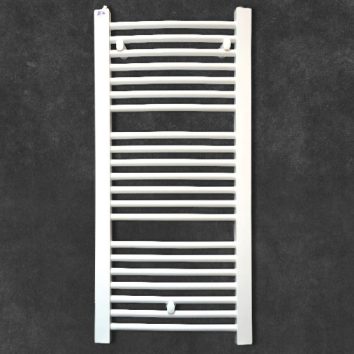

Bathroom radiator 1490 x 600 (1352 W)

The LUX bathroom radiator is a tubular radiator that takes up very little space with its shape and design. Its main purpose is to heat the air in the bathrooms, but it can also be used in other rooms (work, living, children’s rooms, kitchens, but also business premises). This radiator is made of steel pipes (Č 0146), made of material DC01, in standard EN 10305-3, EN 10305-5, has a trapezoidal profile measuring 50x35x25 mm, and the ribs are made of round pipes with a diameter of O25 mm, with a radius of curvature r 1475 mm. Distance between connections: 430 mm Hot water is used as the heating fluid, while heat transfer is done by convection and radiation. The radiator has 4 connections of size 1/2 dimen. The maximum test pressure is 10.14 bar (0.10 MPa) and the working pressure is 6 bar. Installation of the radiator is extremely simple and easy, installation depth during installation of 65 mm – 110 mm, and installation instructions, with warranty card and installation kit, which consists of 3 or 4 mounting brackets depending on the size of the radiator with screws and dowels, 1/2 ″ vent tap, 1/2 č chrome plug, included in the package, as well as protective plastic caps.
